Quick Details

  • Machine Type: Abrator
  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Qing Gong
  • Model Number: QG37 series
  • Feature: Critical Cleaning / Residue Free, Non-Toxic
  • Fuel: Electric
  • Certification: CSA, CE, RoHS, UL
  • Use: Burnishing, Deflashing, Descaling / Stripping, derusting/ surface sensitizing
  • Cleaning Process: abrasive/ sand
  • Cleaning Type: Clean-In-Place (CIP)
  • Industry Used: Automobile, tractor, diesel engine, motor, valve, andmotor cases
  • Material: Metal / Coil
  • Power(W): customized
  • Dimension(L*W*H): customized
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Machine: Automobile brake disc rust removing shot blasting machine
  • Blast cabinet: High chrome, wear resistant and 65 Manganese cast iron
  • Blast wheel impeller and housing: 40 Chrome, wear resistant cast iron
  • Bucket elevator: Bent steel plate welded assembly and wear resistant belt
  • Abrasive residue separator: Roller-type sieve and gravity type pneumatic separation system
  • Abrasive feeding system: Seamless tube and closed gate valve
  • Dust collector system: Imported filter material and low & intermediate pressure blower
  • Electronic Control System: PLC
  • Helical conveyor systems: wear resistant, hardened 16Manganese blades
  • Machine color: customized

Packaging & Delivery

Packaging Details Pallets and wooden boxes;
Plastic wraps;
Delivery Time Within 20 working days after deposit being confirmed

Specifications

Automobile brake disc rust removing shot blasting machine :
1. Cost-effective
2. Environmentally friendly
3. High productivit

  Automobile brake disc rust removing shot blasting machine

 Used for descaling and derusting brake discs:



Hook Info

QG37 series: hook hanging type shot blasting machine is used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloys and other spare parts. It is widely used in foundry, forging, mechanical and steel industries. In particular, the QG378 series features no required foundation footings, multiple-hook hanging without changing the travel rails, a compact structure, and high productivity.



 Main parts:

1. PLC control panel

2. Blast cabinet

3. Blast wheel assembly

4. Dust collector

5. Helical conveyor system

6. Abrasive residue separator

7. Bucket elevator

8. Abrasive reclaimer

9. Abrasive silo

10. Abrasive sluice

11. Hook traveling rail

12. hook system

13. rotating hook hangers





QG37 Series Parameter and Application:

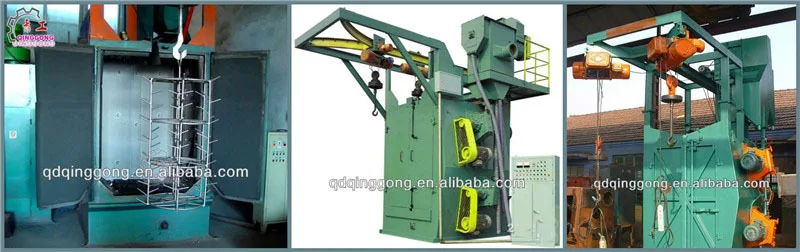

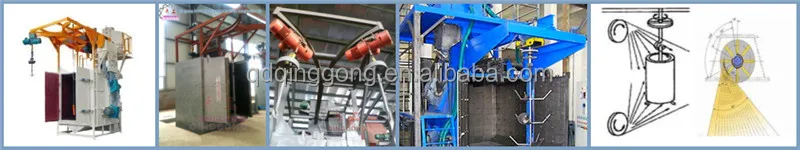

QG 37 Series Pictures:









Company Information

About us

Qingdao Qing Gong Machinery Co., Ltd. is conveniently located in the West Coast New Zone of Qingdao city with an excellently placed geographical location adjacent to a vast transportation system of highways and shipping port for timely delivery of product worldwide. The company has been engaged in the research, development and manufacture of shot blasting machinery for many years and has a large technical force with intense production and design experience.

 Our advantages

The company’s level of research and development, its advanced science and technology, and its economic strength are unique in the industry. It has established a close working relationship with several research institutions and has a professional engineering design team which gives it an indispensable status in the shot blast manufacturing industry.



Our products

All Qing Gong machinery is manufactured according to the highest safety standards and must pass our rigorous quality controls before shipping. Our shot blasting machinery series includes: horizontal movable, stone, through type, roller conveyor type, hook hung type, tumbler belt type, overhead rail travel type, rotary table type, internal and external pipe cleaning type. Additional products include: sand mixer, resin sand regeneration line, environmentally friendly dust collecting equipment, etc.



Our services

To facilitate the installation and maintenance of our products, we have established more than 60 offices worldwide and have developed a stringent management system for those offices. Our fully trained engineers are available, and on call 24 hours a day, 7 days a week.



Our Promises

Our company’s mission is: "to survive through quality, to develop through technology”. We continue to develop high quality products to win and to serve customers with excellent after-sales service.

The company, also, adheres to the principle of "highest quality and service reputation first" and constantly blazes new trails through innovation. We are willing to work with customers for a better future at home and abroad.





Our main products and application fields:







Our Services





Packaging & Shipping





Our certificates



FAQ

Giving us answers to questions below will assist us in recommending the right machine to satisfy your specific production needs.



1.  What’s the measurements (length, width, height) and weight of the work piece that you are going to                clean?

2.   What’s the everyday cleaning amount and weight?

3.   What’s the required speed?

4.  What’s the minimum and maximum size of your work piece?

5.  How many hours per day usage?
